Suppose you think that purchasing an elevator and fitting it into any space is the only work required to enjoy the luxury of the elevator. Then, it is wrong. A great deal of planning and work goes into installing a home elevator. Have you considered your new elevator’s standard components? If not, then, at that point, ensure that you know all about standard home lift dimensions before requiring a statement. If you don’t have enough room in that frame of mind to oblige the standard lift aspects, you might have to consider different possible outcomes.
From general elevators for two-story houses to multi-floor lifts, find out how to determine the proper home lift dimensions that prove fruitful for you. Introducing a specially fit lift can convey an inward feeling of harmony that your home will stay your home long into the future, regardless of what life throws your way.
What are the General Dimension Necessities for a Home Lift?
As a rule, you want at least 20 to 25 square feet of room to install a home lift. Depending on the elevator design you intend to utilize, you could require around 8 inches of pit space to dive into the ground underneath the lift. The smallest home lift is usually a pneumatic vacuum lift, which is “pit-less” by design and hence requires less space for installation.
Standard private lift cabins usually measure around 3 feet wide by 4 feet down, which requires a hoistway measuring at least 4 feet wide and 5 feet down. A few more modest home lift dimensions measure only 3 feet by 3 feet, around 9 feet square, yet plans this small might not easily accommodate a wheelchair or numerous individuals.
4 Models To Choose From
Are you looking for an in-home elevator? Simply pick your favorite below to learn more.
PVE30 - Home Elevator
Single Passenger Residential Elevator
Space-Saving Solution
Exterior Diameter
30 Inches
(750 millimeters)
Maximum Weight
350 Pounds
Rated: 1 Person
Per Use
PVE37 - Home Elevator
Two Passenger Residential Elevator
Flexible & Dynamic Lift
Exterior Diameter
37 Inches
(933 millimeters)
Maximum Weight
450 Pounds
Rated: 2 People
Per Use
PVE52 - Home Elevator
Three Passenger Residential Elevator
Wheelchair Accessible Lift
Exterior Diameter
52 - 11/16 Inches
(1,316 millimeters)
Maximum Weight
525 Pounds
Rated: 3 People
Per Use
The Cube - Home Lift
Two Passenger Residential Elevator
Affordable Alternative To Stairs
Exterior Diameter
52 - 11/16 Inches
(1,316 millimeters)
Maximum Weight
450 Pounds
Rated: 2 People
Per Use
Things to Consider for Home Lift Dimensions
The most important thing before installing an elevator is to have the ideal size that fits your space accurately. A couple of things influence how much space you want for your private lift. The kind of lift you need matters, and the requirements of your home plan might help you figure out where you should put a home lift. A couple of interesting points while concluding how much space you truly need following the home lift dimensions include:

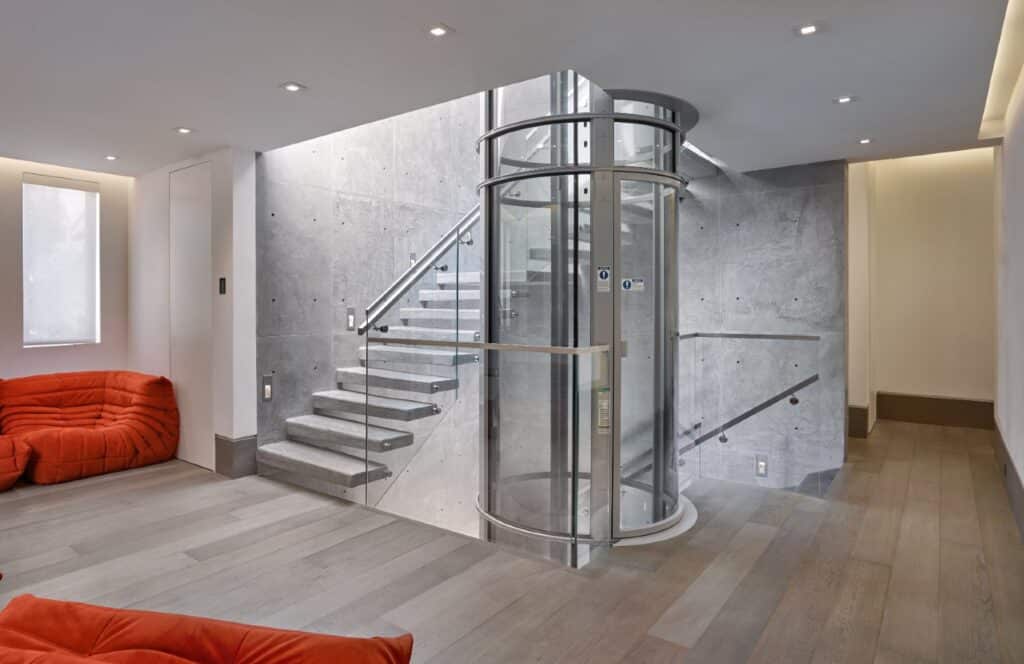

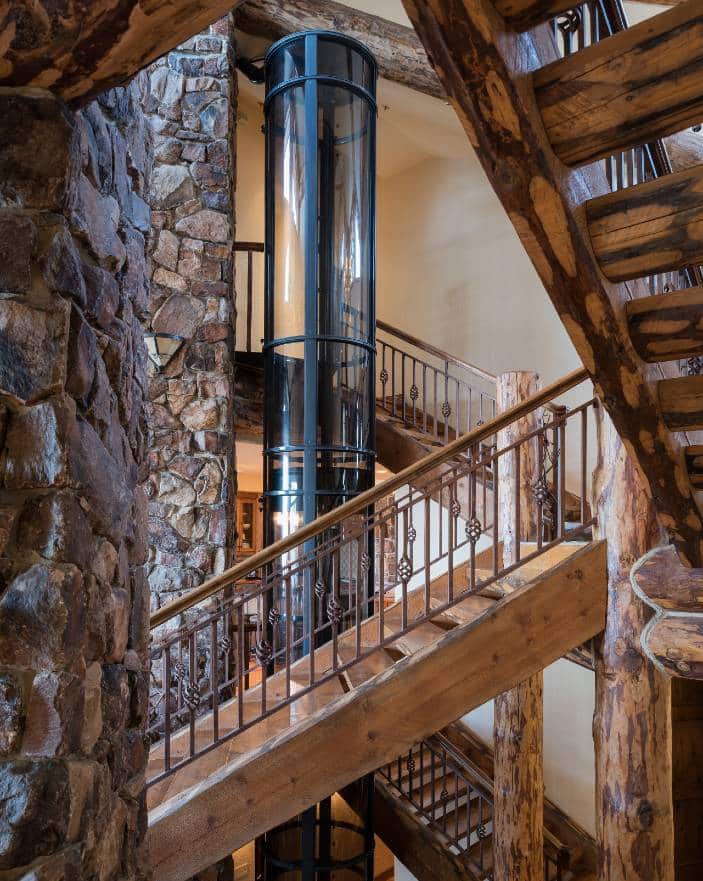

1. Space for Drive and Mechanical Parts of an Elevator
You might require space for an outside electrical framework and drive parts that power your home lift. These parts are crucial for installing any home lift. A few home lifts have a drive framework mounted in the hoistway, limiting the essential space outside the shaft. Different lifts require an outer machine space for the drive. If you have less space, consider the compact design models of Pneumatic Vacuum Elevators (PVE), which have the best performance with enhanced features.
2. Wall Width
A home lift regularly utilizes a rail framework joined to a wall, so the width of the wall matters when determining whether you have sufficient room. Having 30 square feet of accessible space probably won’t be sufficient if you don’t have a sufficiently wide wall to snare the rail onto. Moreover, many other types of elevator rooms are also situated with some walls, which also impact the home lift dimensions.
3. Entryway Width
Some home lifts frequently have entryways measuring 36 inches wide to accommodate a wheelchair, although a few more modest models might have entryways as narrow as 21 inches wide.
4. Space Around the Lift
The space is taken up by the actual lift cabin, the lift lodging, and the components that make the lift run appropriately need running clearance and space around the border of the elevator. There ought to be sufficient space for the ways to open accurately and for travelers to get onto the lift and land at each level. You likewise need enough space over the lift. Many models expect somewhere around 6 inches above clearance over the highest point of the lift. Nearby building regulations might indicate a specific measure of space at the top or sides, so you also want to consider those necessities.
5. Number of Floors
Most private lifts are planned with a shaft length of 25 to 50 feet, so moving between a few stories is conceivable with a more modest home lift. If your home incorporates several levels, you could require a bigger lift with a longer shaft. Make sure to count completed cellars and loft space as a level in the event that you believe the lift should go that far.
6. Weight Restrictions and Lift Holding Capacities
The weight limit of your lift might restrict the number of individuals or the gear you can bring into the elevator cabin. If you intend to move heavier things (1,000 lbs.) between floors, consider whether you want a bigger lift with a more extreme weight limit. Bigger lifts also have variations in dimensions, which should be considered when purchasing and installing a home lift.
7. New Lifts for Existing Homes
For existing homes attempting to retrofit, you could likewise have to overhaul part of your electrical framework to oblige the home lift dimensions. You want adequate room behind the walls to course new electrical wires.
Sometimes, introducing a home lift implies rerouting other frameworks in your home, such as an air conditioning system or water pipes in your walls. When considering space necessities for your home lift, you want to consider these progressions and where you intend to move ventilation work or plumbing.
Pre-Installation Measurement Checklist
Before contacting a dealer or requesting a quote, take these measurements and note them down. Having this information ready will significantly speed up the site assessment.
- Floor-to-floor height: Measure the distance from finished floor to finished floor on each level the lift will serve. This determines shaft/travel height.
- Available footprint: Mark out the area you’re considering for the lift. Note width × depth in feet and inches. Minimum target: 20–25 sq ft for traditional lifts; pneumatic models can be smaller.
- Wall availability and width: Identify which walls can bear a mounting rail. Note wall width and whether any walls are load-bearing.
- Overhead clearance at top floor: Measure from the finished top floor to the ceiling/roof structure above. Most systems require at least 80–100 inches.
- Pit availability: Check whether a pit can be dug at the base level (typically 8 inches). If not, note this pit-less pneumatic options may be your best fit.
- Entryway clearance: Measure doorway openings near the planned install location. Standard wheelchair access requires at least 32–36 inches.
- Electrical panel location: Note where your main electrical panel is and the distance to the planned install area. This affects wiring cost.
- Existing HVAC/plumbing in walls: Identify any ducts, pipes, or wiring that run through the walls in your target area. These may need to be rerouted.
- Number of stops needed: Count every level: basement, ground, intermediate, attic/loft all count as stops.
- Primary user needs: Note whether the primary user requires wheelchair access, uses a walker, or simply needs general mobility assistance. This directly affects the minimum cab size you should specify.
Lift Size Considerations
Availability considerations have driven the development of lift size guidelines. Meeting wheelchair and cot access prerequisites requires cautious choice, particularly concerning home lift dimensions and designs.
1. ADAAG Private Lift Size Prerequisites and Guidelines
Lift models consistent with ADAAG guidelines offer different floor sizes and inside cabin levels, taking care of assorted accessibility needs. Lift door width and height can likewise be custom-made to suit explicit requirements according to every user.
2. Standard Shaft Opening in Home Lift Dimensions

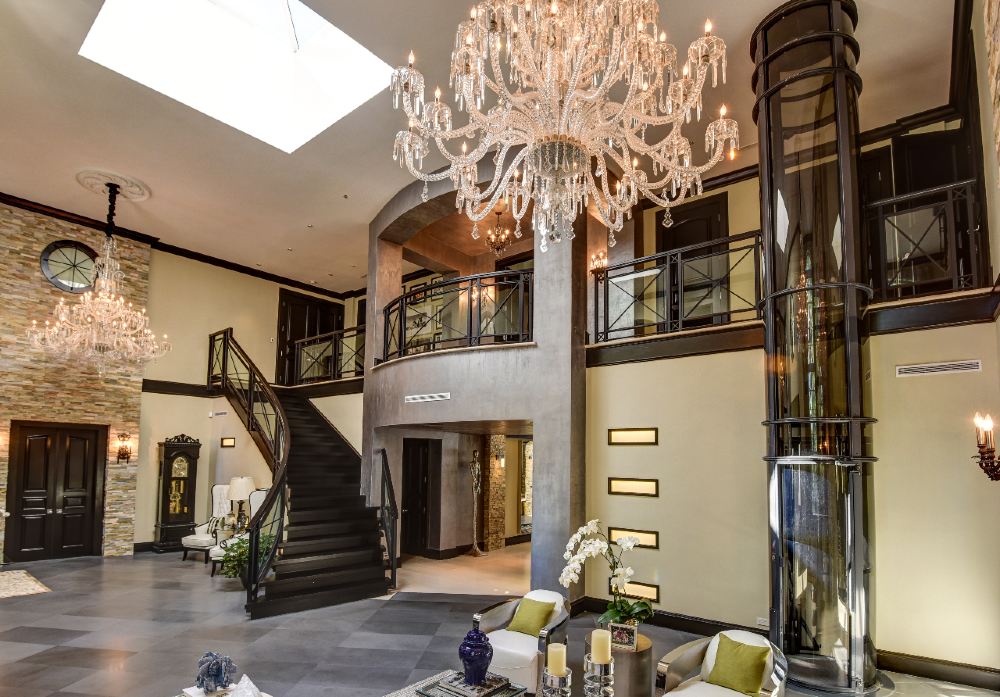

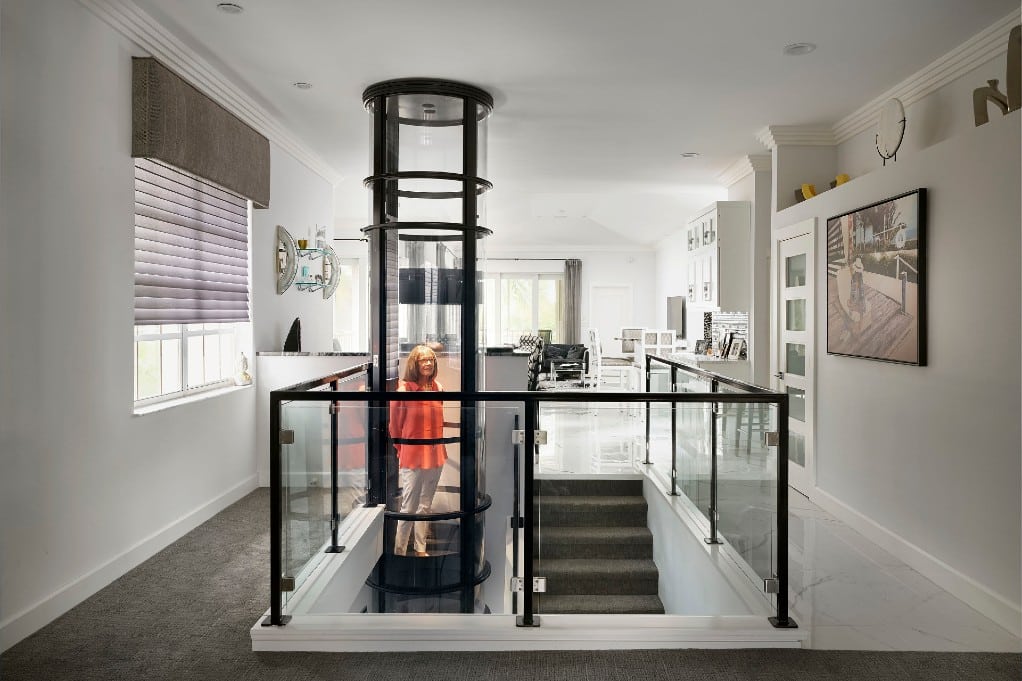

Home lifts can fit inside shaft dimensions ranging from 5 feet by 4 feet to 5 feet by 7 feet, with a typical shaft length of 50 feet. While most homes comfortably accommodate lifts with three to four stops, taller structures may require larger machines. For a detailed comparison of how different residential elevator space requirements vary by lift type, including hydraulic, corner, and in-line drive systems, that break down covers minimum and maximum constraints side by side.

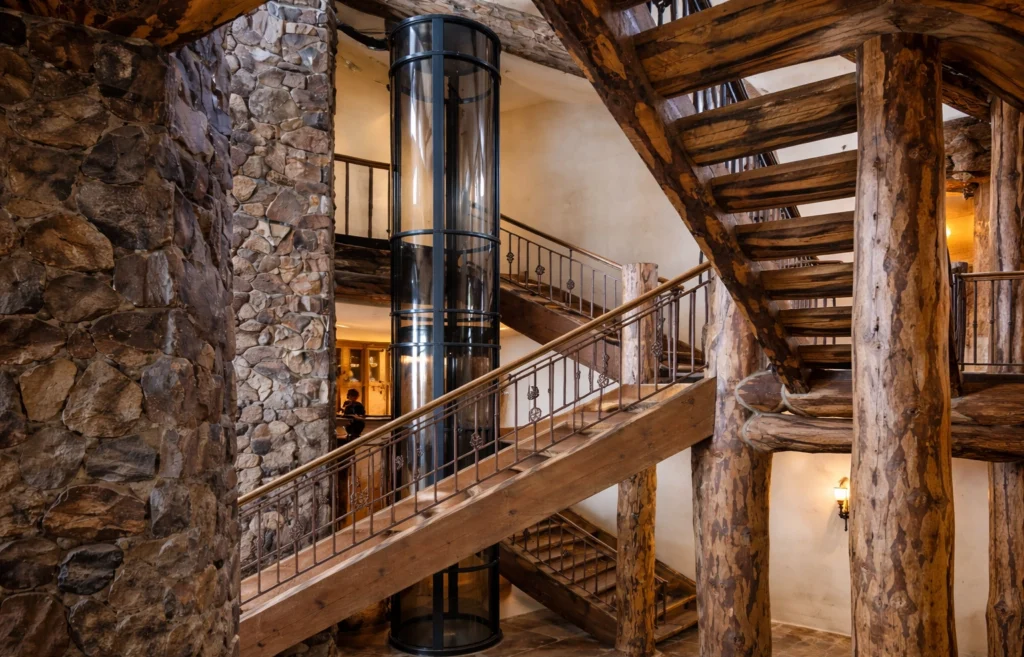

Ideal Home Lift Dimensions Via Pneumatic Vacuum Elevators
Pneumatic Vacuum Lifts (PVE) present a setup of imaginative lift arrangements custom-fitted to address different issues while sticking to exact aspects for ideal execution and usefulness. PVE offers models of pneumatic vacuum home elevators with excellent and precise dimensions for optimal working:
| Models | Exterior Diameter | Floor Stops | Weight Capacity | Passengers |
| PVE 30 | 750 mm | 2-5 floors | 350 pounds | single passengers |
| PVE 37 | 933 mm | 2-5 floors | 450 pounds | Two passengers |
| PVE 52 | 1316 mm | 2-5 floors | 525 pounds | Two to three passengers |
| THE CUBE | 1316 mm | 2 floors | 450 pounds | Two passengers |
Whether you’re searching for a reduced arrangement like the PVE30 for restricted space, an adaptable choice like the PVE37 for two travelers, an open and wheelchair-accessible PVE52, or a reasonable and unique The Cube, PVE has a model that suits your necessities. These are pragmatic and increase the value of your home by improving accessibility and comfort in moving around your home.
Once you’ve confirmed your measurements fit one of these models, the next useful step is understanding what a home elevator costs to purchase and install so you can budget for the full project before requesting a quote.
FAQs
1. What is the standard size of a home lift?
The standard size of a private lift is commonly 36 inches (3 feet) wide and 48 inches (4 feet) deep. However, dimensions might change in light of explicit models and customization choices of home lifts.
2. How much space is required for a lift?
A home lift is expected to take up roughly 20 square feet or less, with shaft space normally occupying around 5 square feet. Pneumatic home elevators require less space because of their pit-less framework.
3. What is the size of a single home lift?
Depending on the model framework, a single lift normally measures 36 to 48 inches wide and 48 to 60 inches down. These dimensions give adequate space to single travelers or restricted portability gadgets.
4. How much space is required for a home lift?
The space required differs by the type of home lift. Pneumatic lifts are intended to be minimized and squeezed into more modest spaces, while traction lifts require more space for their machine room and shaft. If you have restricted space, a compact model like PVE30 may be the best decision.
5. What are the average minimum and maximum home lift dimensions?
The minimum dimensions for the elevator cab are around 36″ wide x 48″ deep, with maximums surpassing 60″ x 72″. The minimum door dimensions are around 32″ wide, with maximums surpassing 48″ for more extensive access. Lastly, the minimum dimensions for the Shaft are around 5′ x 5′ (25 square feet), with bigger spaces offering greater adaptability and solace.
6. What are the typical lift elevator dimensions for different types?
Passenger lifts usually measure 1100–1600 mm wide and 1400–1600 mm deep, accommodating 6–13 people. Residential lifts are smaller, around 900–1100 mm wide and 900–1300 mm deep for 2–4 passengers. Cargo elevators are larger, with widths of 1500–2500 mm and depths of 2000–3500 mm.
7. What overhead clearance and cab dimensions are required for residential elevators?
Residential elevators usually need 90–100 inches of overhead clearance above the top floor. Standard cab sizes are around 36″ × 48″, with a maximum of 18 sq. ft. under ASME A17.1. For accessibility, a 36-inch door width is recommended. Traditional systems may need a separate machine room, while MRL elevators place equipment inside the shaft to save space.
