Pneumatic Vacuum Elevators, LLC offers a wide range of customizations to tailor our innovative residential elevators to your home projects needs. Out of all the upgrades available for our home elevators, one customization is the variety of possible door opening configurations available for each residential elevator model.

Residential Elevators – Door Swing

While quoting our panoramic home elevators, prospective customer have the option of selecting the door swing for their residential lift by either choosing our Standard Left hand Door Swing or Custom Right Hand Door Swing.

The Standard Left Hand Door Swing is where the door, when inside the elevator cabin, swings towards the left. Our Standard Left Hand Door Swing is offered with every Vacuum Elevator purchased.

The Custom Right Hand Door Swing is a customization option available for all 3 models of our residential elevators and allows the door, when inside the cabin, to swings towards the right. As a customization, please note the Custom Right Hand Door Swing must be requested and purchased with your order with additional production time needed to manufacture your order.

See photo below providing a visual reference for the Door Swing options available for our home elevators:

Residential Elevators – Door Swing

While there are some custom possibilities to mix and match the PVE residential elevator door swings, as a rule of thumb, all levels must have the same door swing.

If you have any custom requests or questions relating to the door swing options for your home elevator, please contact PVE directly and a PVE Sales Representative will happily assist.

Residential Elevators – Door Configurations

In addition, depending on the PVE home elevator model, there are various door configuration options available for the positioning of the upper floor doors when purchasing our residential elevators.

Please Note: There is only 1 door opening available per floor so customers need to finalize the door configuration option when placing their home elevator orders.

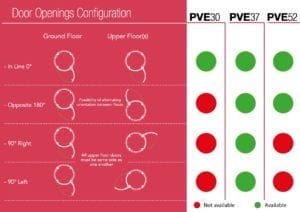

See chart below lighting the Door Configurations options available for each of our 3 home elevator models:

Home Elevator – Configuration Option

PVE30 Home Elevator – Configuration Options

Because of its small and compact size, the PVE30 home elevator only offers Same-Side Door Configurations where the upper floor doors must be facing the same direction. Our Custom Right Hand Door Swing option is available for our PVE30, but as noted, all doors will have the same door swing for all levels.

PVE37 Home Elevators – Configuration Options

As the first Vacuum Elevator model developed in 2002, the PVE37 home elevator offers the most flexibility when it comes to door configurations options. With Same-Side and Opposite Side (180° degree) Door Configurations available, the PVE37 Residential Elevator is the our only air-driven home elevator model that has the option to have the upper floor doors be 90° degrees to the right or 90° degrees to the left.

While there are no limitation when it comes to Same-Side or Opposite Side (180° Degree) Door Configurations for the PVE37 residential elevator model, if a customer selects either the 90° degree left or 90° degree right option, then all upper floor doors must be the same 90° degree configuration.

Our Custom Right Hand Door Swing option is available for our PVE37, but as noted, all doors will have the same door swing for all levels.

PVE52 Home Elevators – Configuration Options

As the largest air-driven, residential elevator on the market, the PVE52 home elevator offers the option of mixing and matching the upper floor doors to be either Same Side or the Opposite Side (180 degree°) Door Configurations.

Our Custom Right Hand Door Swing option is available for our PVE52, but as noted, all doors will have the same door swing for all levels.

For any further inquiries relating to door configuration and door swing options available for all our air-driven residential elevator models, please fill out one of our information request forms or call PVE directly at (305) 884-1091 and a PVE Sales Representative will happily address your inquiry.
