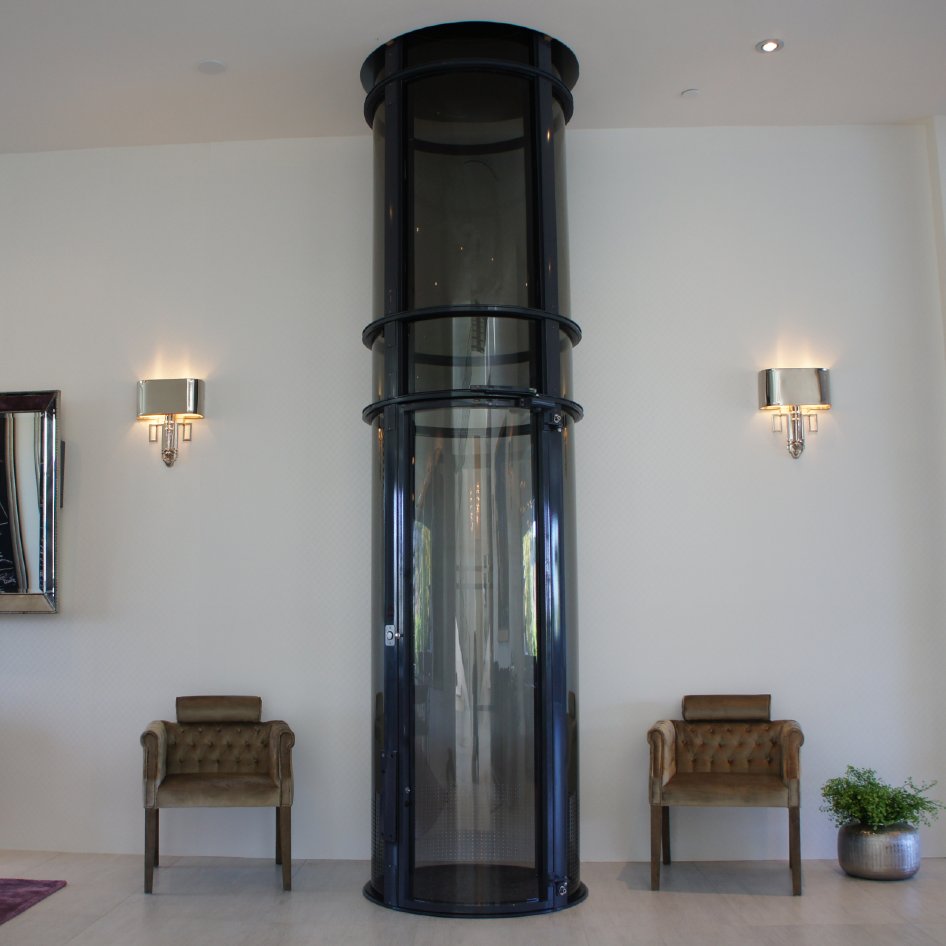

PVE30 – Residential Elevator
Single Passenger Residential Elevator
30″ Inch Exterior Diameter
350 lbs Capacity
Single Passenger Home Elevators
The PVE30 is the smallest elevator in the world, yet it is just as capable as other elevators that are much larger and much more expensive. The PVE30 elevator has a 350lb (159kg) lift capacity and is capable of up to 50 ft. (15m) of rise over as many as five stops. With a 30 inch outside diameter, these elevators are small enough to fit in even the most modest-sized home. If you thought elevators were out of reach for you because of size constraints, this is the solution you have been looking for.
No Pre-Construction Pit, Hoist Way or Machine Room Required
The PVE 30 Home Lift was designed as a compact and cost-effective alternative to taking the stairs, and are ideal elevators for townhouses and other tight areas where traditional elevators wouldn’t even be a consideration. As the smallest of the three vacuum elevator models, it only requires a 32-inch finished through floor hole for the elevator cylinder (and you!) to pass through. Rather than requiring a large elevator shaft, this self-contained home lift rests on the existing ground floor and provides a beautiful panoramic view as you travel from floor to floor within your home. During the ascent or descent, you will enjoy cool, ambient temperatures as a cabin fan circulates the air in the cabin and an LED light keeps the cabin lit.
Eco‐Friendly Home Elevators
All that is needed to power this mighty elevator is 220V, 25 Amp, single phase service. This is roughly the same as what your washer and dryer use. From an environmental and cost-saving standpoint, this mobility solution draws the least amount of electricity out of all our home lift models. Just like the other models in our lineup, these elevators do not even use electricity to descend. Not only will your life be a lot easier now that you can avoid the stairs, but your electric bill will barely change!
Precision Engineering
Just because it is small doesn’t mean these elevators are any less capable or any less quality-made. It is manufactured from polycarbonate and aluminum, making it one of the best elevators on the market today. Place your confidence in our air-driven elevators and you won’t be disappointed.
Home Elevators – PVE30 Standard Features
- No pit, hoist way, or machine room required
- 50 ft (15m) Total Rise Max
- 35 ft/M traveling speed
- Two to Five Stops
- External cylinder diameter: 30 inches (750mm)
- Internal cabin diameter: 20 ½ inches (521mm)
- Internal cabin height: 6’7” (79 inches/ 2005mm)
- Entrance way opening: 20 ½ inches (521mm)
- Through Floor or Balcony Mount Landings
- Power Supply: 25 AMP 220VAC
- In-line door openings
- Aluminum and polycarbonate cylinder structure
- Automatic interior LED lighting and fan
- Mechanical emergency safety brake system
- One year limited manufacturer warranty
OPTIONS
COLORS
- Color Chart
- Standard Black
- Light Gray
- White
- Dark Gray
- Taupe
- Anodized Silver
UPGRADES & FEATURES
- Smart Home Integration
- Solar Panel Package
- Homing Feature
- Remote Control Option
- Phone
- Cabin Key Lock
- Earthquake Brackets
CUSTOMIZATIONS
- Clear Polycarbonate Panels
- Custom Right Hand Door
DOOR OPENING OPTIONS
DRAWINGS & SPECS
Space-Saving, Easy to Use Mobility Solution with Low Maintenance
This compact vacuum elevator system is the choice of many homeowners because of its small size, but that’s not its only advantage. With it’s compact design, the PVE30 offers several benefits for homeowners who use a wheelchair to get around or have other mobility issues. There’s the ease of maintaining this compact pneumatic elevator: Because vacuum elevators use air pressure to operate, thus eliminating the need for shafts or machine rooms, they also have fewer moving parts — which means less maintenance.
Along with their contemporary style, these self-supporting lifts are also durable and reliable. When shopping for small house lifts, price is one of the biggest considerations. Fortunately, lifts require less energy to run, require less maintenance, and are easier to install, which positively impacts the elevator cost. A sleek design that requires minimal construction to install, our home elevator installation is quick and affordable. And without the need for a traditional elevator shaft, our vacuum elevators also offer better visibility, inside and out. Low maintenance is also among the benefits of owning a space-saving PVE30 as compared to traditional shaft-style elevators. However, like all machinery, in house elevators require regular inspections and need to be maintained properly to keep them running smoothly.
What Are the Maintenance Requirements For the PVE30 Home Lift?
When shopping for small elevators for homes, cost and installation are two of the main considerations. The PVE30 in home elevator installation is much quicker and less impactful than traditional elevators. To install elevator in house takes 1-3 days, and the impact on your home is minimal. Any maintenance required is always expedient and minimally invasive to your daily schedule. A manufacturer’s study shows that pneumatic elevators need maintenance once every 5 years, or about 15,000 lifts, to replace the main seal.
This is only a minor inconvenience compared to a traditional elevator that requires frequent inspections, annual maintenance, and costly parts that must be routinely replaced.
Low maintenance is just one of the features that make our smallest elevator model perfect for homeowners who have mobility issues, but still demand superior function and minimal hassle from their accessibility equipment.
Servicing Over 90+ Countries Globally
Best Home Accessibility Upgrades for U.S. Households
As American households evolve, so do the needs of the people who live in them. Aging populations, disabilities, and shifting […]
Residential Elevators Through the Ages: Then and Now
Residential elevators have come a long way from their early mechanical roots. What began as a luxury for the elite […]
How Much Space Do You Need for a Home Elevator?
Thinking about adding a home elevator, but not sure if you have enough space? You’re not alone. Many homeowners assume […]
TESTIMONIALS
Tamara Gordon
My house was built in 1925 and it was hard to get something to fit in with the décor of my home, but the PVE fit in perfectly. I am thrilled with the design, engineering, and reliability of the vacuum elevator.
Stan Barth
Kim Klotz
Home Lift Manufacturers
PVE currently manufactures three versions of its air driven home elevators, ranging from single to a three-passenger, wheelchair accessible home elevator. All of PVE’s home lift systems are capable of up to a 50 foot (15m) vertical rise over as many as five stops. The unique design of our home lift is a perfect choice for any retrofit or new construction project and will enhance the value of one’s home without the consuming footprint of traditional elevator. These innovative home lifts do not require any pre-construction shaft, pit or machine room and can be installed in as little as two to three days. By using a pump to generate areas of higher and lower atmospheric pressure within the cylinder hoist way, the unit smoothly moves between floors while using much less energy than other house elevators.
