The largest Residential Elevator model available, the PVE52 is the perfect choice for those in need of a Wheelchair-‐Accessible Residential Elevator or wheelchair lift. With it’s quick installation, innovative design and minimal pre-construction requirements, this Three-Passenger Residential Elevator offers everything you need in a residential elevator.
Standard Features
Residential Elevator – PVE52
- No pit, hoist way, or machine room required
- Self supporting structure
- 50 ft (15m) Total Rise Max
- 30 ft/min travelling speed
- Two to Five Stops
- External cylinder diameter: 52 11/16 inches (1,316mm)
- Internal cabin diameter: 43 1/2 inches (1118mm)
- Internal cabin height: 6’7” (79 inches/ 2007mm)
- Entrance way opening: 32 inches (813mm)
- Through Floor or Balcony Mount Landings
- Power Supply: 35 AMP 220VAC
- In-line and 180° door openings
- Aluminum and polycarbonate cylinder structure
- Automatic interior LED lighting and fan
- Mechanical emergency safety brake system
- One year limited manufacturer warranty
- ASME A17.7 Certified
*All Upper Floor Doors Must Be Same Side Door Openings for 90° Door Configuration
OPTIONS
- Split-Unit Feature
COLORS
- Standard Dark Gray
- Light Gray
- White
- Black
- Taupe
- Anodized Silver
- Color Chart
DOOR OPENING OPTIONS
- Phone
- Cabin Key Lock
- Earthquake Brackets
DRAWINGS & SPECS
Residential home elevators Fit anywhere! No Machinery necessary.

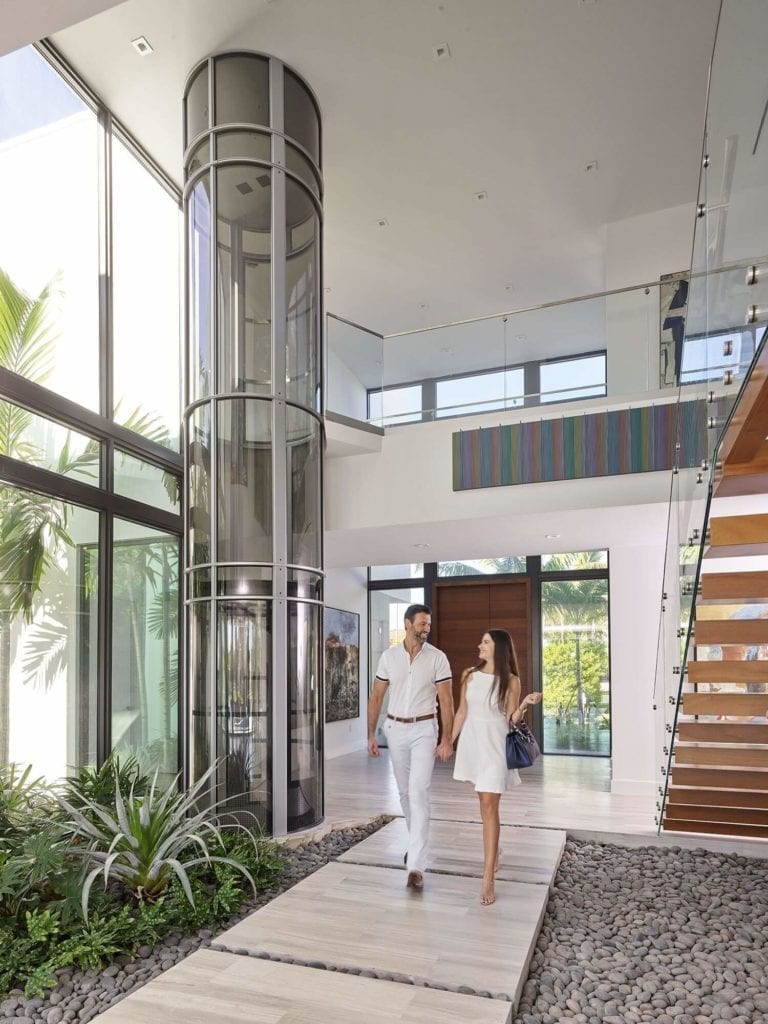

This is the largest of the three vacuum elevators, capable of carrying three people or two people if one is in a wheelchair. Even our largest lift takes up less space in your home than other traditional elevators. Like all other vacuum elevators, the PVE52 does not need a separate space for machinery or additional room above and below the lift for a pit. Since the unit has a self-supporting structure, you will not have to add a frame to your home before installing it. This means you can fit this lift anywhere in your home!
ECO-Friendly: Plug & Play Residential Elevator
Don’t forget that this vacuum elevator model won’t be costly in your electric bills. As an environmentally-friendly home elevator, the only electrical required to power it is 220V, 35 Amp, single phase service. This wheelchair-accessible residential elevator maintains all of the safety and technology features that the other PVE models have as well. Should a power outage occur, the vacuum lift safely descends to the lowest level and the mechanical door lock enables the passenger to exit, preventing passengers from getting stuck. The cabin is equipped with an LED light as well as a cabin fan that circulates the ambient air throughout the elevator car.
Wheelchair Accessible Home Elevator
The PVE52 can be set up to have between two to five stops, which means it can be used in homes up to five stories or a total of 50 feet. It has an external cylinder diameter of 52 11/16 inches. Inside the unit measures a roomy 43 1/2 inches in diameter. This provides enough space for a person in a wheelchair with an attendant or for up to three adults to stand in comfort. The cabin height is 6′ 7″, which is tall enough for provide headroom for most people. Rolling a wheelchair through the 32-inch wide entrance opening is easy to do! With same side or opposite side door offerings, the largest of the residential vacuum elevators can be configured to accommodate almost any elevator installation.
Innovative Design: Panoramic Visibility
There are many options for wheelchair-accessible elevators or wheelchair lifts, but only the PVE52 gives you the space you need, the safety features you require, and a design that compliments your home’s decor. When you or a loved one needs help getting around in your home, installing a residential wheelchair lift is a good choice.
Never has accessibility been so affordable, so attractive, or so simple!
TESTIMONIALS
I thoroughly enjoy riding in my PVE elevator as its extremely comfortable… I would unhesitatingly, recommend it to people who are confined to a wheelchair like myself, to me it’s that good and reliable!
Tamara Gordon
My house was built in 1925 and it was hard to get something to fit in with the décor of my home, but the PVE fit in perfectly. I am thrilled with the design, engineering, and reliability of the vacuum elevator.
Stan Barth
Highly recommend. Working with PVE was such an incredible experience! From our very first meeting they were so professional, time efficient & helpful. Couldn’t be happier. Our elevator is heaven sent. Thank you PVE & team.
Kim Klotz
Residential Elevator Manufacturers
PVE currently manufactures three versions of its air driven residential elevators, ranging from single to a three-passenger, wheelchair-accessible home elevator. All of PVE’s vacuum home lift systems are capable of up to a 50 foot (15m) vertical rise over as many as five stops. The unique design of the vacuum residential elevator is a perfect choice for any retrofit or new construction project and will enhance the value of one’s home without the consuming footprint of a traditional home elevator. The innovative home elevator does not require any pre-construction shaft, pit or machine room and can be installed in as little as two to three days. By using a vacuum pump to generate areas of higher and lower atmospheric pressure within the cylinder hoist way, the unit smoothly moves between floors while using much less energy than other home elevators.
