VACUUM ELEVATOR PVE37 – RESIDENTIAL ELEVATOR
PVE37 VACUUM ELEVATOR
- No pit, hoist way, or machine room required
- Self supporting structure
- 50 ft (15m) Total Rise Max
- 30 ft/min travelling speed
- Two to Five Stops
- External cylinder diameter: 37 inches (933mm)
- Internal cabin diameter: 32 inches (813mm)
- Internal cabin height: 6’5” (77 inches/ 1956mm)
- Entrance way opening: 21 inches (534mm)
- Weight of unit: 1,100 lbs for 2 stop w/ 9’ ceilings
- Through Floor or Balcony Mount Landings
- Power Supply: 30 AMP 220VAC
- In-line, 180° and 90° door openings*
- Aluminum and polycarbonate cylinder structure
- Automatic interior LED lighting and fan
- Mechanical emergency safety brake system
- One year limited manufacturer warranty
- ASME A17.7 Certified
The PVE37 is the first of the pneumatic vacuum elevator models that was introduced to the elevator industry back in 2002. The panoramic home lift measures 37 inches in outside diameter and 32 inches wide on the interior of the cabin. The air driven residential elevator can safely carry two adults or 450 lbs up to as many as five stops or 50 feet in total rise. For accessibility purposes, you can even opt to have a cabin seat installed for a single rider to sit while being carried up to another floor.

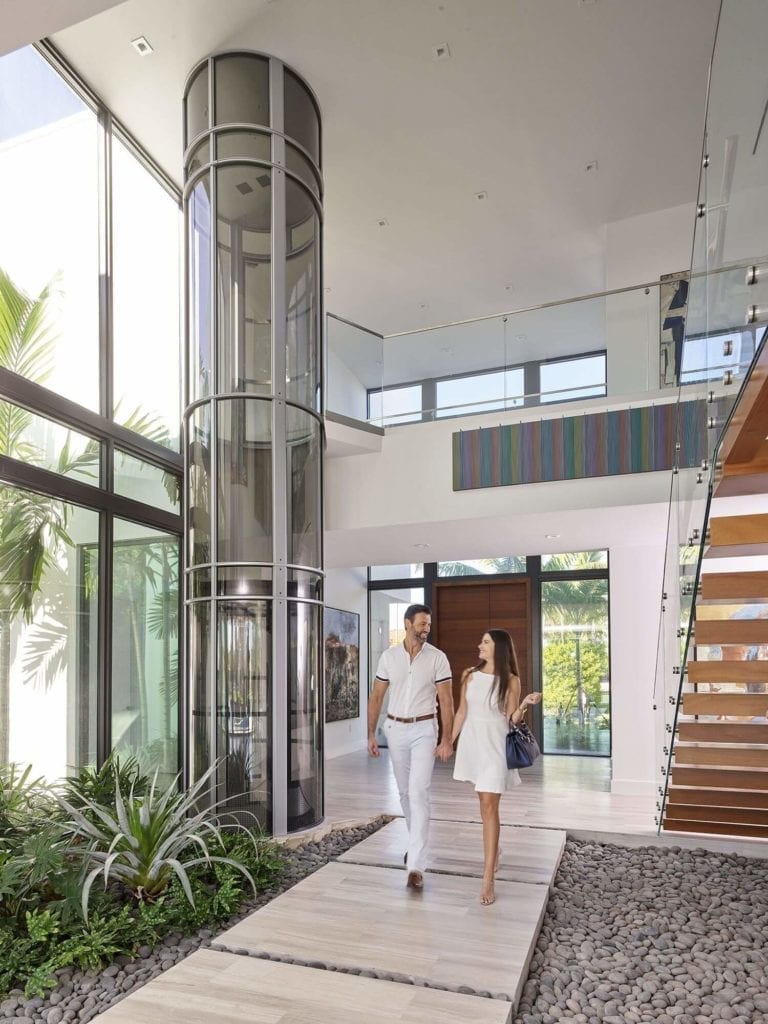

The compact PVE37 home elevator is the perfect option for an existing residence as it does not take up much space but still accommodates all of the desired applications of any residential elevator. Whether it is used for passengers, suitcases, pets, household items, etc., the PVE37 lift serves a number of functions without the consuming footprint and significant construction costs required of a traditional home elevator. In both new construction and retrofit applications, many even choose to feature the vacuum lift in the front entrance of their home as a work of art and conversation piece.
The PVE37 elevator operates with five individual turbines, but these powerful turbines only use 5 kilowatts of electricity, making the PVE37 an environmentally friendly home elevator. The panoramic home elevator runs merely off of a 30 amp/220 volt power supply, which is the same as most washer and dryers. If the power goes out in your home, you will not get stuck in the elevator. The safety system is designed to automatically switch to a slow descent when the power goes out, and mechanical brakes engage if the elevator ever begins to free fall.
One of the great advantages of the air driven home elevator technology is that there is very minimal maintenance required. The only scheduled maintenance per the ASME A17.7 certification is every five years or approximately 15,000 lifts on average, the main seal needs to be replaced. There is a significant cost savings over time if you are to compare this to the regular service required for a traditional residential elevator.
The PVE37 offers in-line (same side) or 180° (opposite side) door openings with one door at each elevator landing. Standing outside of the round elevator and looking at the door, the door opens from left to right (top right hinged). The door width opening is 20 ½ inches which will accommodate a passenger with a walker.
Celebrating its 10th year in production, the PVE37 has paved the way for the full line of pneumatic vacuum elevators. The many features of this PVE37 home lift make it a great option if you want something larger than the PVE30 but do not have enough space or the need for the wheelchair-accessibility PVE52.
